Solar Home Power System
Solar Home System is a stand-alone system, suitable for residential applications such as home appliances, lighting, computer and water pump. It is made up of solar panels, solar charge controller, batteries. If the output is AC 220V or 110V, it needs the inverter. Solar home system is generally designed and sized to supply DC and/or AC electrical appliances. This consists of solar module connected to solar charge controller, inverter and battery. The generated DC power is stored into battery and converted to AC power for supplying to AC loads. We offer 25W to 50kW Solar Power System, and we also can design your own Solar Power System based on your home /office/industry electrical appliances.

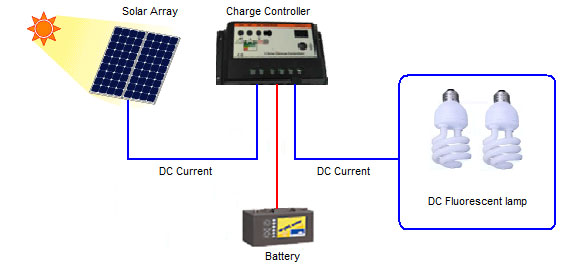

Sun Light Power Home Kit 25Wp (Off-grid system)
Sample Application of solar home system |
||||||
| Appliance | Model Specification | Load Power (W) | Quantity | (Work Hours)One day | Total Wh/day | continued overcast and Raining 4 days |
| Saving light | PAE-7W-2U12VDC | 7 W | 2 | 7.5h | 105 Wh | |
| Solar Power Equipment | ||||||
| Description | Model | Power | Quantity | Total Capacity | ||
| Solar Panel | THD25/12-AE4/9 | 25 Wp | 1 | 25Wp | ||
| Solar Free Maintenance Battery | BT38-12 | 40Ah/12V | 1 | 40Ah | ||
| Solar Charge Controller | EPHC 5A/12/24V | 5A/12V/24V | 1 | 5A | ||

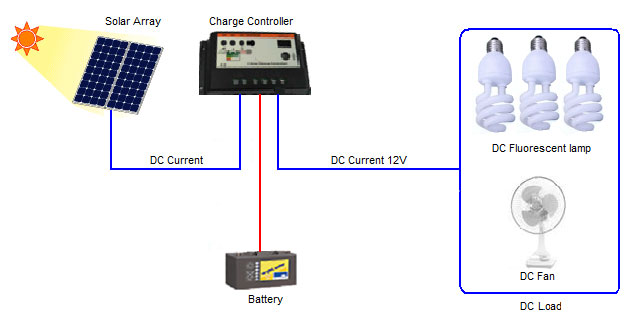

Sun Light Power Home Kit 100Wp (Off-grid system)
Sample Application of solar home system |
||||||
| Appliance | Model Specification | Load Power (W) | Quantity | (Work Hours)One day | Total Wh/day | Continued Overcast and Raining 4 days |
| Saving light | PAE-11W-2U12VDC | 11 W | 3 | 5h | 165 Wh | |
| Table Fan | PAE-12VCD 30W 14’’ | 30 W | 1 | 8h | 240 Wh | |
| Total | 405 Wh | |||||
| Solar Power Equipment | ||||||
| Description | Model | Power | Quantity | Total Capacity | ||
| Solar Panel | THD100/12-AE6/18 | 100 Wp | 1 | 100Wp | ||
| Solar Free Maintenance Battery | BT150-12 | 160Ah/12V | 1 | 160Ah | ||
| Solar Charge Controller | EPHC 10A/12/24V | 10A/12V/24V | 1 | 10A | ||
| Inverter | PI-3-12(230VAC) | 300W | 1 | 300W | ||

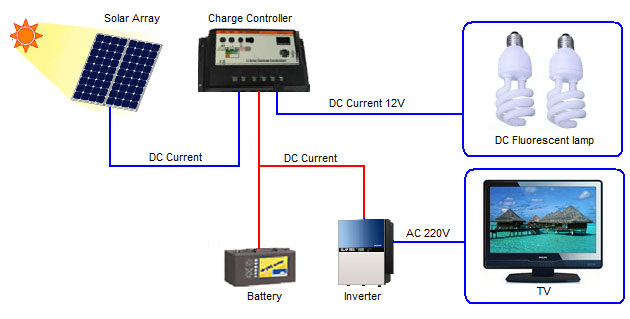

Sun Light Power Home Kit 100Wp (Off-grid system)
Sample Application of solar home system |
||||||
| Appliance | Model Specification | Load Power (W) | Quantity | (Work Hours)One day | Total Wh/day | Continued Overcast and Raining 4 days |
| Saving light | PAE-11W-2U12VDC | 7 W | 2 | 5h | 84 Wh | |
| LCD TV | LCD-19’’ | 50 W | 1 | 4h | 200 Wh | |
| Total | 284 Wh | |||||
| Solar Power Equipment | ||||||
| Description | Model | Power | Quantity | Total Capacity | ||
| Solar Panel | THD100/12-AE6/18 | 100 Wp | 1 | 100Wp | ||
| Solar Free Maintenance Battery | BT150-12 | 160Ah/12V | 1 | 160Ah | ||
| Solar Charge Controller | EPHC 10A/12/24V | 10A/12V/24V | 1 | 10A | ||
| Inverter | PI-3-12(230VAC) | 300W | 1 | 300W | ||

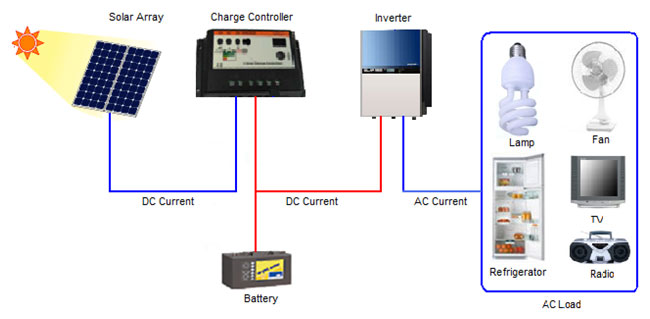

Sun Light Power Home Kit 500Wp (Off-grid system)
Sample Application of solar home system |
||||||
| Appliance | Model Specification | Load Power (W) | Quantity | (Work Hours)One day | Total Wh/day | Continued Overcast and Raining 4 days |
| Saving light | PAE-9W-3U | 9 W | 3 | 6h | 162 Wh | |
| LCD TV | LCD-19’’ | 50 W | 1 | 2h | 200 Wh | |
| Ceiling Fan | 48" | 65W | 2 | 8h | 1040 Wh | |
| Radio / Mobile Phone | 15 / 20W | 1 | 4h | 60 Wh | ||
| Refrigerator | 150 litre | 0.50 kWh | 1 | 24h | 500 Wh | |
| Total | 1862 Wh | |||||
| Solar Power Equipment | ||||||
| Description | Model | Power | Quantity | Total Capacity | ||
| Solar Panel | THD100/12-AE6/18 | 100 Wp | 5 | 500Wp | ||
| Solar Free Maintenance Battery | BT100-12 | 100Ah/12V | 4 | 400Ah | ||
| Solar Charge Controller | EPHC 40-30A/12/24V | 30A/12V/24V | 1 | 30A | ||
| Inverter | PI-6-24(230VAC) | 600W | 1 | 600W | ||
Sun Light Power Home Kit 1500Wp (Off-grid system)
Sample Application of solar home system |
||||||
| Appliance | Model Specification | Load Power (W) | Quantity | (Work Hours)One day | Total Wh/day | Continued Overcast and Raining 4 days |
| Saving light | PAE-11W-3U | 13 W | 6 | 6h | 624 Wh | |
| LCD TV | LCD-19’’ | 50 W | 1 | 4h | 240 Wh | |
| Ceiling Fan | 56" | 70W | 3 | 10h | 2100 Wh | |
| Radio / Mobile Phone | 15 / 20W | 1 | 4h | 80 Wh | ||
| Refrigerator | 150/200 litre | 0.60 kWh | 1 | 24h | 600 Wh | |
| Washing / Dryer Machine | 0.75 kWh | 1 | 2h | 750 Wh | ||
| Pump | 1/2 Hp | 1.10 kWh | 1 | 2h | 1100 Wh | |
| Total | 1862 Wh | |||||
| Solar Power Equipment | ||||||
| Description | Model | Power | Quantity | Total Capacity | ||
| Solar Panel | THD75/12-AE4/9 | 75 Wp | 20 | 1500Wp | ||
| Solar Free Maintenance Battery | BT120-12 | 200Ah/12V | 12 | 24/1200Ah | ||
| Solar Charge Controller | EPIP602-40II | 24/48V/40A | 1 | 40A | ||
| Inverter | PI-20-48(230VAC) | 48VDC/200W | 1 | 2000W | ||
Model
Description
Applications
PAE-25-SHS
Solar home system for lighting; size 25 Wp
2 lights of 7 W compact fluorescent lamp for 7,30 hours use
PAE-50-SHS
Solar home system for lighting; size 50 Wp
1 light of 11 W compact fluorescent lamp for 8 hours use 2 lights of 7 W compact fluorescent lamp for 8 hours use
PAE-75-SHS
Solar home system for lighting; size 75 Wp
2 lights of 11 W compact fluorescent lamp for 8 hours use 2 lights of 7 W compact fluorescent lamp for 9 hours use
PAE-100-SHS
Solar home system;
size 100 Wp
size 100 Wp
2 lights of 7 W compact fluorescent lamp for 5 hours use 1 LCD TV 19” of 50 W for 4 hours use
PAE-150-SHS
Solar home system;
size 150 Wp
size 150 Wp
3 lights of 11 W compact fluorescent lamp for 7 hours use 1 Fan 48” of 65 W for 4 hours use
PAE-200-SHS
Solar home system;
size 200 Wp
size 200 Wp
1 light of 11 W compact fluorescent lamp for 10 hours use 2 lights of 7 W compact fluorescent lamp for 6 hours use 1 LCD TV 22” of 55 W for 2 hours use 1 Fan 48” of 65 W for 6 hours use
PAE-300-SHS
Solar home system;
size 300 Wp suitable for small size home 1 bed
size 300 Wp suitable for small size home 1 bed
3 lights of 9 W compact fluorescent lamp for 4 hours use 1 LCD TV 19” of 50 W for 2 hours use 1 Fan 36” of 55 W for 5 hours use. 1 50 litre Refrigerator Class A of 0.50kWh
PAE-400-SHS
Solar home system;
size 400 Wp suitable for small size home 1 bed
size 400 Wp suitable for small size home 1 bed
3 lights of 11 W fluorescent lamp + TV + radio + fan + 50 liter refrigerator Class A Approximate energy produced 1.2 - 2.0 kW per day
PAE-500-SHS
Solar home system;
size 500 Wp suitable for medium size home 2 bed
size 500 Wp suitable for medium size home 2 bed
3 lights of 9 W fluorescent lamp + TV & DVD + radio + fan + 100 liter refrigerator Class A Approximate energy produced 1.5 – 2.5 kW per day
PAE-800-SHS
Solar home system;
size 800 Wp suitable for medium size home 2 bed
size 800 Wp suitable for medium size home 2 bed
6 lights of 11 W fluorescent lamp + TV + radio + fan + 200 liter refrigerator Class A + Washing & Dryer Machine Approximate energy produced 2.4 – 4.0 kW per day
PAE-1000-SHS
Solar home system;
size 1000 Wp suitable for medium size home 2 bed
size 1000 Wp suitable for medium size home 2 bed
6 lights of 11 W fluorescent lamp + TV + radio + fan + 200 liter refrigerator Class A + Washing & Dryer Machine Approximate energy produced 3.0 – 5.0 kW per day
PAE-1500-SHS
Solar home system;
size 1500 Wp suitable for medium size home 3 bed
size 1500 Wp suitable for medium size home 3 bed
6 lights of 13 W fluorescent lamp + TV + radio + fan + large size refrigerator Class A + Washing & Dryer Machine + Water Pump Approximate energy produced 4.5 - 7.5 kWh per day
PAE-2000-SHS
Solar home system;
size 2000 Wp suitable for medium size home 4 bed
size 2000 Wp suitable for medium size home 4 bed
6 lights of 11 W fluorescent lamp + TV + radio + fan + large size refrigerator Class A + Washing & Dryer Machine + Water Pump Approximate energy produced 6.0 – 10.0 kW per day
PAE-3000-SHS
Solar home system;
size 3000 Wp suitable for small villa home
size 3000 Wp suitable for small villa home
Any appliances except air conditioner Approximate energy produced 9.0 – 15.0 kW per day
PAE-4000-SHS
Solar home system;
size 4000 Wp suitable for small villa home
size 4000 Wp suitable for small villa home
Any appliances except air conditioner Approximate energy produced 12.0 – 20.0 kW per day
